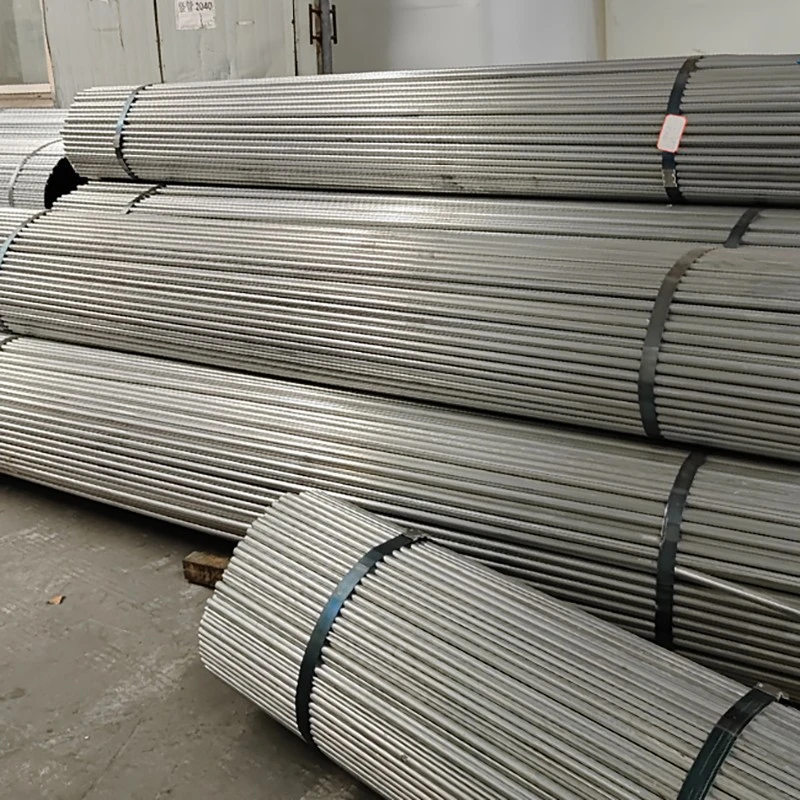

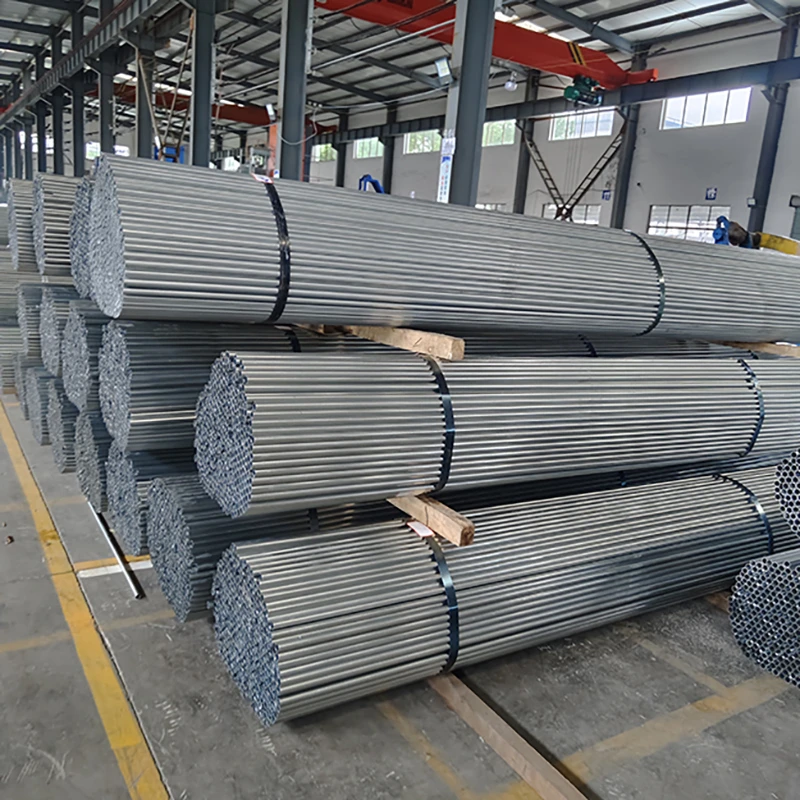

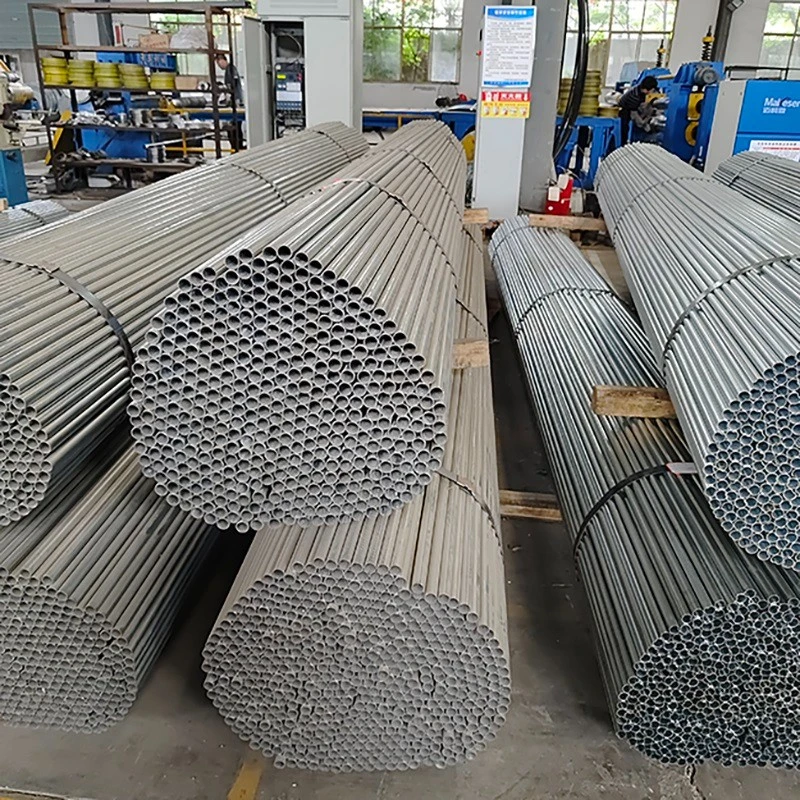

Horizontal Frame Tube

Jiangsu Xinhuasheng Packaging New Materials Co., Ltd. is one of the leading manufacturers and suppliers of horizontal frame tube in China. We are committed to provide high quality customized products made in China with low price. Welcome to buy discount horizontal frame tube in stock here and get free sample from our factory.

The cross tubes, also known as horizontal Frame tube or transverse members, are critical structural components within the framework of Intermediate Bulk Container (IBC) ton barrels. These tubular elements are strategically positioned to connect the vertical posts or sidewalls of the frame, forming a rigid lattice that defines the container's cuboid shape and ensures its structural integrity.

• The overall frame is fixed in shape, preventing deformation and twisting.
• It can bear the weight of a full load of liquid, distributing the load to the corner and center feet.
• The supporting steel base plate reinforces the pallet structure.
• It facilitates stacking, forklift handling, and long-distance container shipping.

Hoop Stress: When a tonne container is filled with liquid, the liquid generates outward lateral pressure. The horizontal frame pipes act like "hoops," tightly binding the inner liner and converting the lateral tension into tensile stress in the steel pipes, thus limiting the deformation of the inner liner.



Force Transmission: In a stacked configuration, the weight of the upper tonne container is transferred through its base to the top horizontal pipe of the lower tonne container, and then through the vertical columns to the bottom pallet. Therefore, the weld strength of the top horizontal pipe is crucial.



Impact Protection: In the event of a minor collision during forklift handling, the middle horizontal pipe is typically the first line of defense, absorbing impact energy and preventing the steel pipe from directly puncturing the inner liner.

The design details of the horizontal frame tubes determine the suitability of IBC tanks for different industries:

• General Chemical Industry: Standard rectangular horizontal steel tube design, suitable for transporting most acidic and alkaline liquids.
• Food & Pharmaceutical Industry: Requires smooth surfaces, no dead corners, and uniform galvanization to prevent dust accumulation and bacterial growth.
• Hazardous Goods Transport: For UN-certified dangerous goods packaging, the wall thickness and welding quality of horizontal steel tubes must pass strict drop and stacking tests to ensure they do not rupture during accidents.

‌
